Ship rudders are essential for directional control, allowing vessels to safely navigate the oceans despite wind, waves, or current.
Whether it’s a small motorboat or a massive tanker, a reliable rudder system is critical for maneuverability and survival especially in emergencies when propulsion and steering are all a crew can depend on.
⚙️ What Is a Ship Rudder?
A rudder is a submerged, blade-like structure located aft (stern) of a vessel. It’s part of the ship’s steering gear system, and its primary role is to redirect water flow to change the vessel’s heading.
Despite their modest size- typically only 1.5% to 10% of the ship’s underwater lateral area, rudders play a pivotal role in ensuring course stability and safe navigation.
🧭 How Does a Rudder Work?
Rudders steer a ship by altering the flow of water around the hull.
Two fundamental concepts explain how this works:
1️⃣ Pivot Point
The pivot point is the imaginary spot around which the ship turns while underway.
- ⚓ When stationary: The pivot point is at the center of the hull.
- 🔙 Moving astern: It shifts aft.
- 🔜 Moving ahead: It shifts forward, the faster the ship goes, the farther forward the pivot moves.
Placing the rudder aft (near the propeller) maximizes its turning effect, especially as forward movement brings the pivot point closer to the bow.
2️⃣ Water Flow and Pressure Difference
When the rudder is aligned parallel to the water flow, it creates no turning force.
However, turning the rudder blade at an angle disrupts this balance:
- One side of the rudder faces high water pressure.
- The opposite side experiences low pressure.
- The resulting pressure differential causes the stern to move toward the low-pressure side thereby turning the vessel.
The faster the flow (especially behind a propeller), the stronger the pressure imbalance and the quicker the steering response.
That’s why rudders are usually placed directly behind the propeller: to harness this accelerated flow.
🧠 Key Takeaway: Rudders don’t push the ship, they manipulate water flow and pressure to rotate the hull around its pivot point.

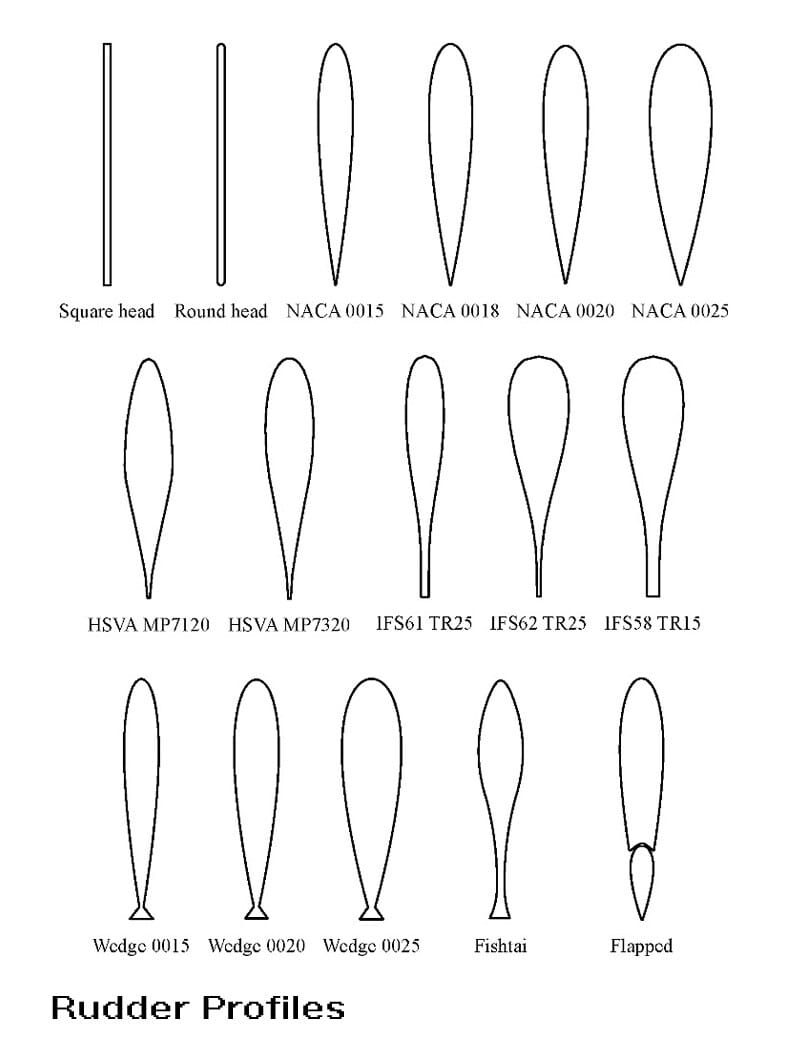

🧪 Rudder Profiles: How Shape Impacts Maneuverability
The rudder profile refers to the cross-sectional shape of the rudder blade.
This shape greatly affects hydrodynamic performance, including lift, drag, cavitation resistance, and turning efficiency.
Here are the most commonly used rudder profiles in modern vessels:
🔹 Flat Plate Rudder
- 📏 Simplest form; can be square-head or round-head
- 🛠️ Easy to fabricate and maintain
- ⚠️ Higher drag, less efficient at larger angles
🔹 NACA Profile
- ✈️ Originally developed by the National Advisory Committee for Aeronautics
- 📉 Low drag, high lift design inspired by aircraft wings
- 🔧 Often used for faster ships needing precise control
🔹 HSVA Profile
- 🧪 Developed by Hamburg Ship Model Basin
- 🚫 Reduces cavitation and vibration through optimal pressure distribution
- 💡 stands for Hamburgische Schiffbau Versuchsanstalt GmbH.
🔹 IFS Profile
- 🧠 Designed by Institut für Schiffbau, Hamburg
- 🔼 High lift coefficient, steep lift curve, wide stall angle
- 🛳️ Used on vessels needing sharp maneuverability
🔹 Fishtail Rudder (Schilling Profile)
- 🐟 Concave trailing edge enhances lift
- ⛴️ Improves low-speed maneuvering, ideal for dredgers and harbor vessels
🔹 Wedge Tail Rudder
- 📐 Similar to fishtail, but with sharper concave geometry
- 🚢 Helps generate more turning force at wider angles
🔹 Flapped Rudder
- 🔁 Includes a movable flap extension at the trailing edge
- 🚀 Increases lift at high rudder angles while minimizing stall
💡 Pro Tip for Seafarers: The rudder profile on your ship can impact stopping distance, turning radius, and fuel efficiency.
What’s the rudder profile of your ship?
🔩 Parts of a Rudder System
A ship’s rudder assembly consists of multiple components that work together to steer the vessel safely and reliably.
Here is a typical part of a rudder shown in the image below:
🧷 Key Rudder Components:
| Part | Function |
|---|---|
| Rudder Blade | Main surface that deflects water flow |
| Rudder Stock | Connects the blade to the steering gear; transmits turning force |
| Rudder Horn | Structural arm that supports the blade and minimizes bending |
| Flap | Movable trailing edge in flap rudders; increases lift |
| Bearings | Reduce friction between rotating parts (top and bottom pintle) |
| Pintles | Vertical pins attached to the leading edge of the rudder |
| Gudgeons | Reinforced bushings or rings that house the pintles |
Not all rudders have every part. For example, spade rudders don’t have horns, and flat plate rudders don’t have flaps.
⚖️ Understanding Rudder Balance Ratio
The balance ratio compares the blade area in front of the rudder stock to the total blade area.
This ratio determines how much turning torque the steering gear must exert to move the rudder, and therefore, how responsive and efficient the system is.
🚢 Rudder Types by Balance Ratio:
| Type | Forward Blade Area (% of total) | Steering Torque Demand |
|---|---|---|
| Unbalanced | 0% | Highest |
| Semi-balanced | < 20% | Moderate |
| Balanced | 20% to 40% | Lowest (can be near zero) |
The goal is to reduce torque without sacrificing control.
A well-balanced rudder reduces wear on the steering gear and improves responsiveness.
⚓ Maritime Insight: When choosing a rudder design, shipbuilders must weigh maneuverability, fuel efficiency, cavitation risk, and system stress. Balance ratio is key.
🔁 Types of Rudders Used on Ships
Rudder types are classified based on how the rudder blade is positioned relative to the rudder stock (axis of rotation).
Each type offers unique performance characteristics depending on vessel size, maneuvering demands, and propulsion setup.
Below are the most common rudder types used on seagoing ships today:
1️⃣ Unbalanced Rudder
An unbalanced rudder has the entire blade positioned aft (behind) the rudder stock.
The steering gear must apply full torque to overcome water pressure resistance, as no part of the blade counterbalances the force.
⚓ Key Features:
- 💡 0% of blade area forward of the rudder stock
- 🔧 Simple design, fewer components
- 📉 Higher torque load on steering gear
- ⚠️ More susceptible to bending stress
- 🛶 Common in small boats, trawlers, and fishing vessels
2️⃣ Semi-Balanced Rudder
A semi-balanced rudder has a small portion (typically <20%) of its blade forward of the rudder stock.
This design helps reduce steering torque without compromising strength.
⚙️ Key Features:
- 🔸 Up to 20% of blade area ahead of the turning axis
- 🔁 Partial balancing reduces stress on gear
- 🛠️ Sturdy and structurally supported
- 🚢 Widely used on bulk carriers and cargo vessels
- 🧰 Easier maintenance than fully balanced types
3️⃣ Balanced Rudder
A balanced rudder has between 20% and 40% of its blade area forward of the rudder stock, which helps neutralize torque during steering.
Some angles create near-zero torque, requiring minimal effort from the steering gear.
🧭 Key Features:
- ⚖️ 20–40% of blade area ahead of the rudder stock
- ✅ Offers precise control at low and high speeds
- 📉 Significantly reduced torque on the rudder system
- ⚓ Suitable for large merchant vessels
- 🛟 Enables tight turning circles during emergencies
🛠️ Advanced Rudder Types
Advanced rudder types use the conventional model of blade position in relation to its turning axis.
They are either balanced, semi-balanced, or unbalanced.
However, they differ in rudder profile, shape, and a few additional features

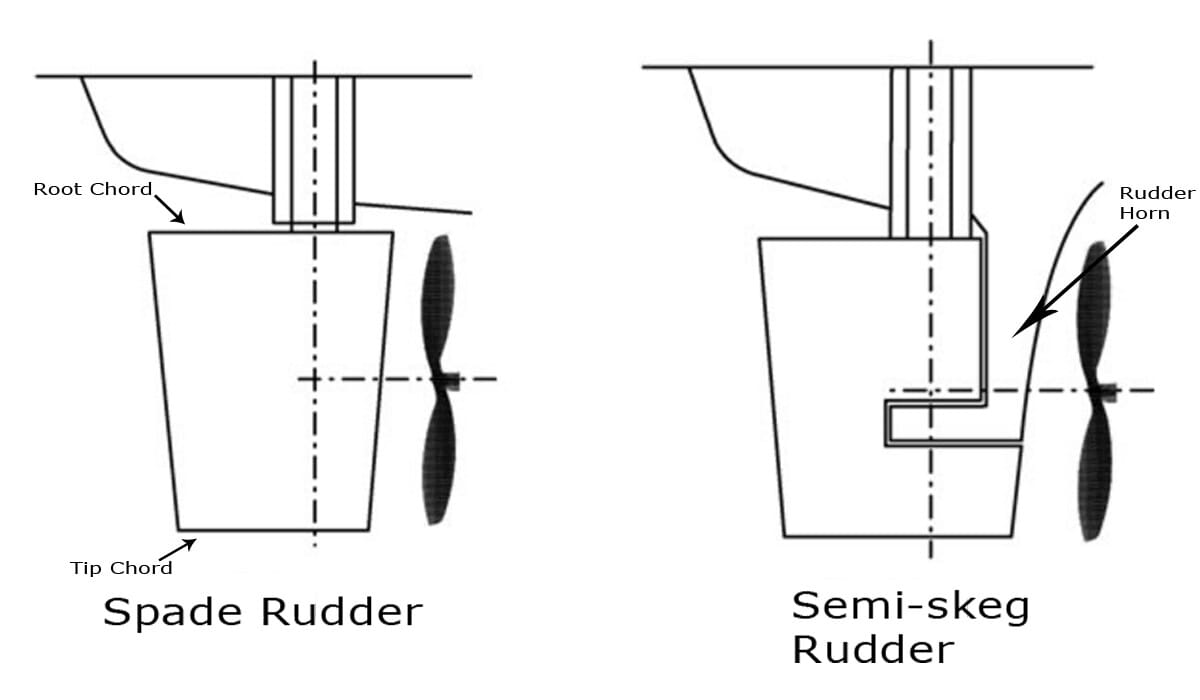

4️⃣ Spade Rudder
A spade rudder is a type of balanced rudder that is tapered starting from the root chord (top of the blade) and going to its tip chord (bottom of the blade)
Its streamlined, tapered blade design reduces drag and increases lift- ideal for vessels needing quick maneuverability.
🚢 Key Features:
- 🛠️ Requires robust structural design
- 🔄 Entire blade is freestanding (no horn or skeg support)
- 📐 Tapered chord enhances flow and minimizes resistance
- ⚠️ High load on rudder stock and bearings
- 🧭 Common on container ships and fast cargo vessels
Its taper ratio reduces drag and maximizes rudder force at high rudder angles.
5️⃣ Semi-Skeg Rudder (Horn or Mariner Rudder)
A semi-skeg rudder incorporates a fixed rudder horn forward of the stock, offering extra support.
It blends the benefits of a semi-balanced rudder with improved structural strength.
🔩 Key Features:
- 🦴 Rudder horn adds rigidity and absorbs loads
- 🔸 Semi-balanced with forward blade section
- ⚓ Ideal for VLCCs and large oil tankers
- 🧰 Allows for larger rudder areas
- 🛠️ Reduces torque without compromising durability
6️⃣ Schilling Rudder
A Schilling rudder, sometimes referred to as a fishtail rudder, features a wide chord with a concave trailing edge and endplates.
It significantly enhances lift, even at high angles, making it perfect for low-speed or restricted maneuvering.
🐟 Key Features:
- 🎯 Fishtail profile with root and tip endplates
- 🔁 Excellent lift at high rudder angles
- ⛴️ Reduces turning circle dramatically
- 🛳️ Used on vessels without stern thrusters
- ✅ Passive (no moving parts), yet highly efficient
7️⃣ Becker Flap Rudder
The Becker rudder is a spade-type rudder with a movable trailing-edge flap that extends outward during turns.
This allows sharper angles without stalling, making it highly responsive in tight spaces like ports or jetties.
🔄 Key Features:
- 🔧 Movable flap increases lift during turning
- 📈 Rudder angles up to 65°+ without performance loss
- ⚙️ Enhanced control at both low and high speeds
- 🚀 Greatly reduces need for tugboat assistance
- 🧠 Developed by Becker Marine Systems, Germany
🧠 Summary Table: Rudder Types at a Glance
| Rudder Type | Balance Ratio | Support Structure | Ideal Use Case |
|---|---|---|---|
| Unbalanced | 0% | Stock only | Small boats, fishing vessels |
| Semi-Balanced | <20% | With horn/skeg | General cargo ships, tanker vessels |
| Balanced | 20–40% | Varies | Large vessels needing tight turns |
| Spade | 20–40% | Freestanding | Fast ships needing agile steering |
| Semi-Skeg (Horn) | <20% | With horn | VLCCs, large tankers |
| Schilling | Variable | Single piece | Low-speed or restricted ports |
| Becker Flap | 20–30% + flap | Movable flap | Precision maneuvering in tight docks |
❓ FAQ: Rudders for Seafarers
What rudder is best for slow-speed maneuvering?
Schilling and Becker flap rudders are ideal. They generate high lift at low speeds.
What rudder do large tankers use?
Semi-skeg (Mariner) rudders for their strength and reduced bending stress.
Why are rudders placed behind the propeller?
To maximize the water flow impact, which enhances lift and steering response.
Can rudder shape affect fuel consumption?
Yes! High-drag profiles increase resistance, while aerodynamic designs like NACA or Becker reduce fuel usage during course corrections.
✅ Conclusion: Know Your Ship’s Rudder
Every rudder type- balanced, semi-balanced, spade, flap- affects how your ship moves, turns, and responds in critical moments.
From port approaches to evasive maneuvers, understanding your rudder’s capabilities isn’t optional, it’s essential maritime knowledge.
🚢 What type of rudder does your vessel have?
🧭 Drop a comment or share your experience with different rudder types. Let’s keep seafarers informed and sharp.
